Macrosniper Camera Grip

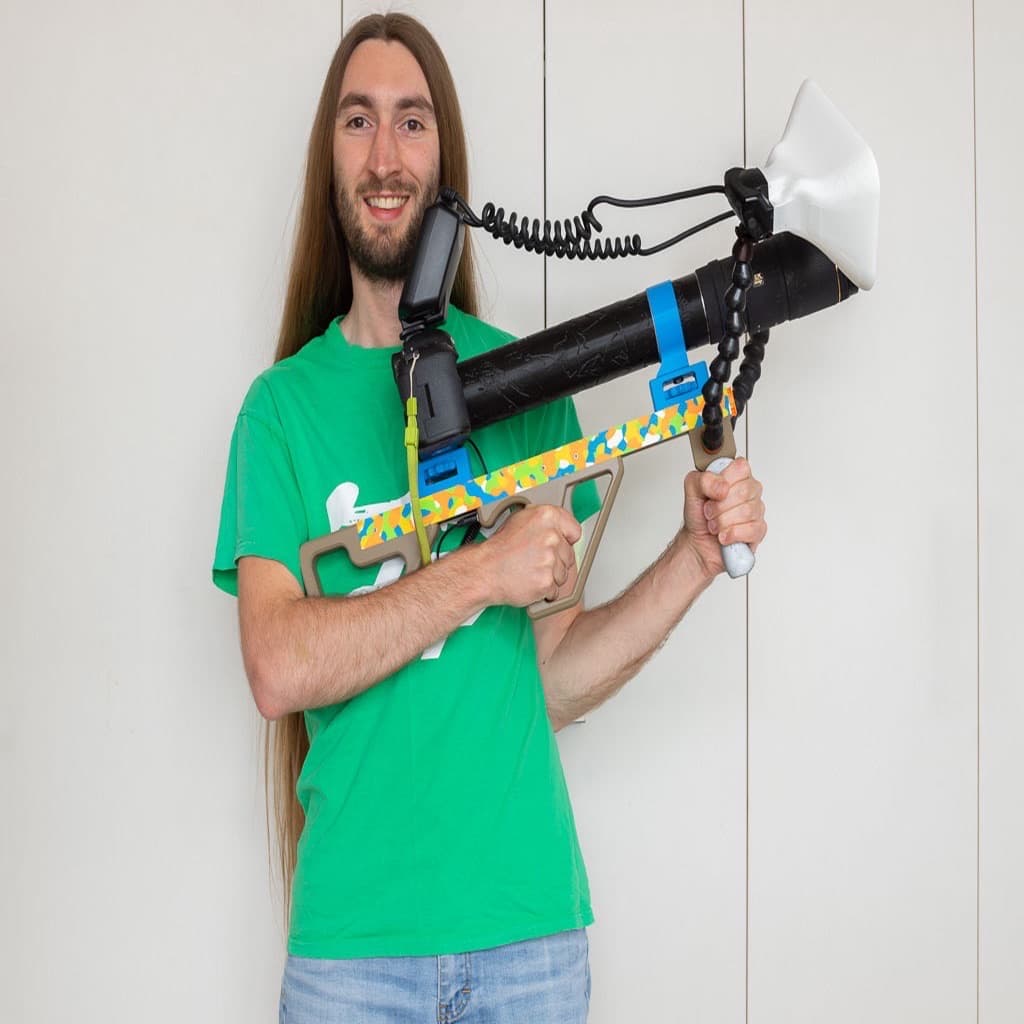

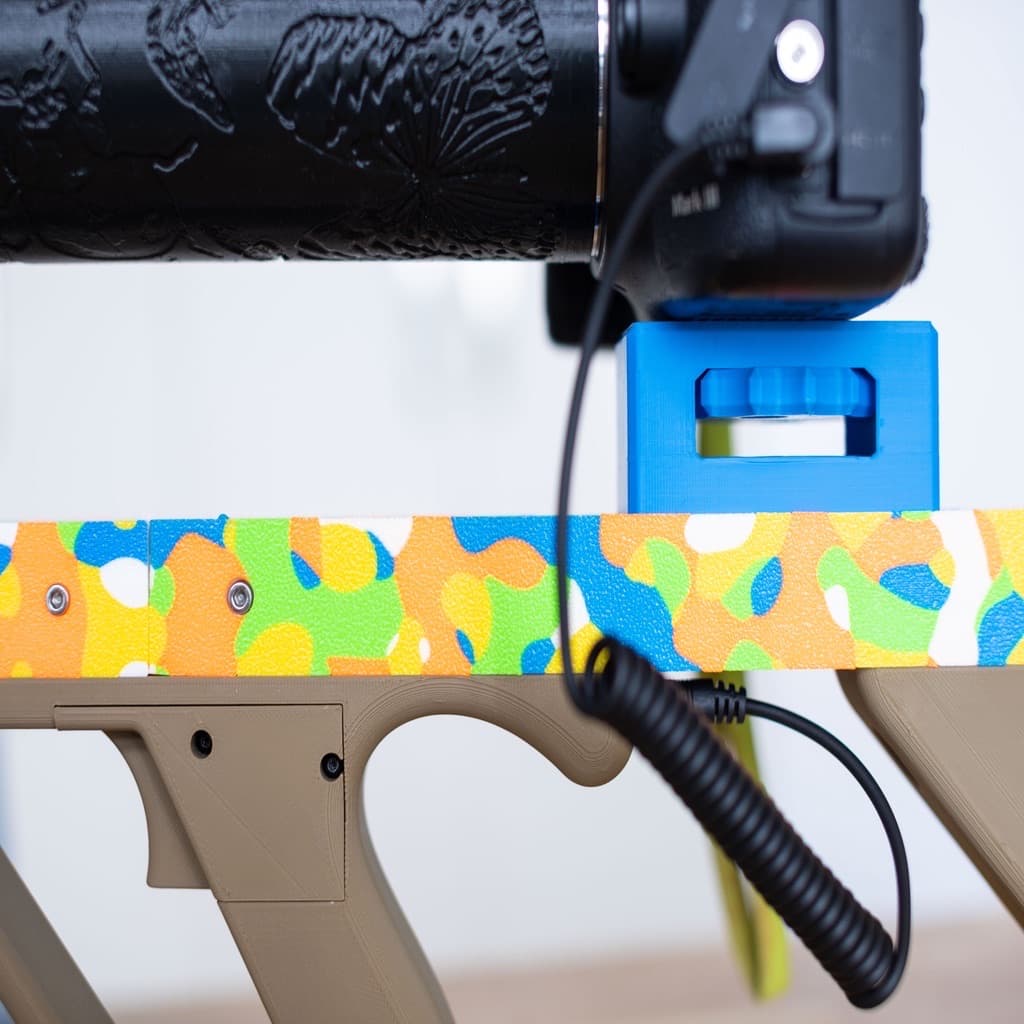

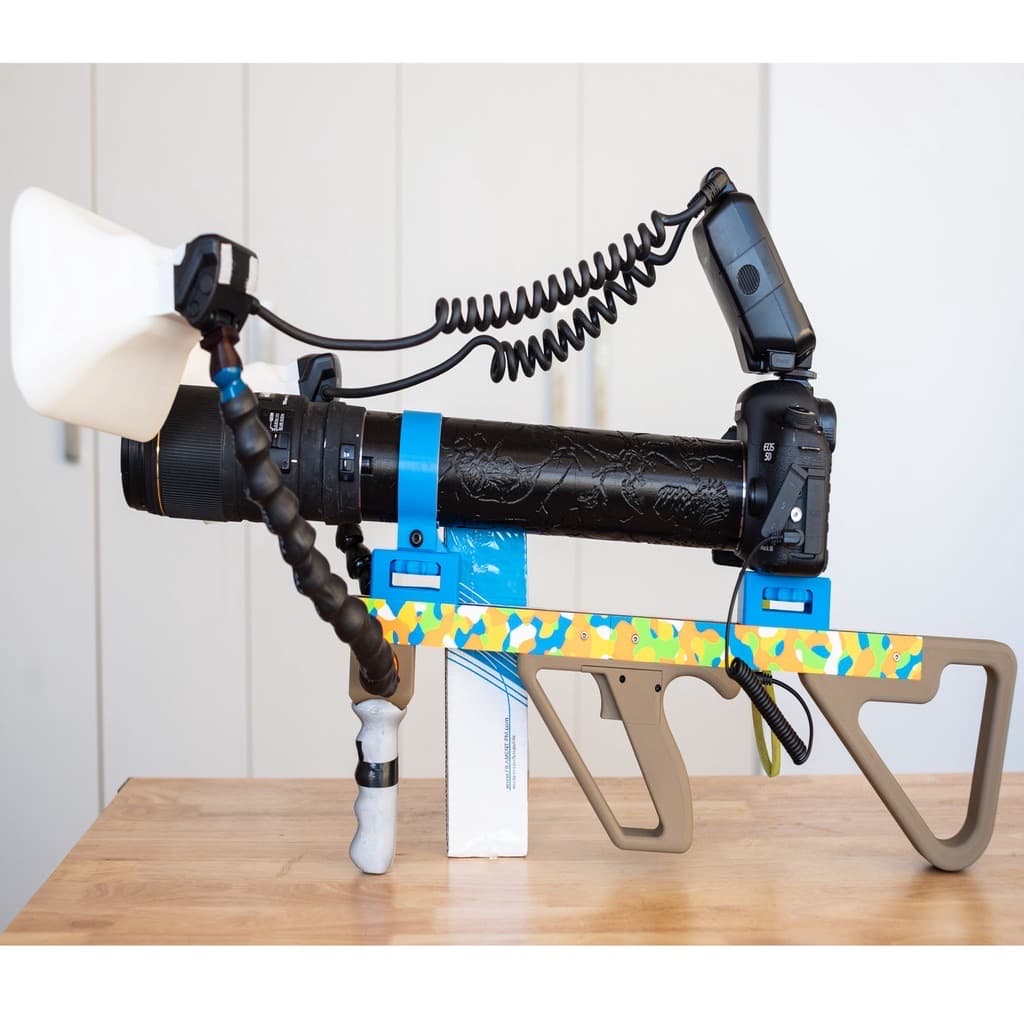

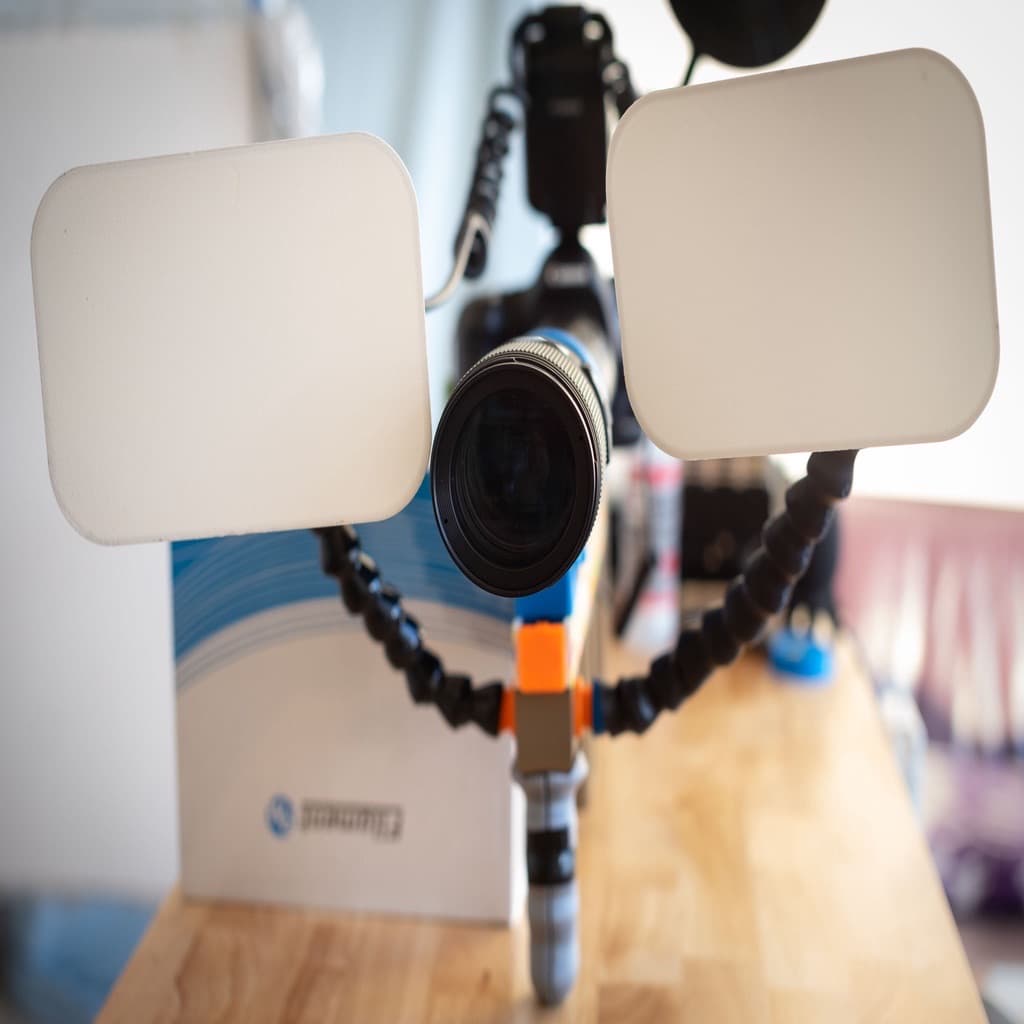

A rifle-style camera grip that mounts on 10-series aluminum extrusion rail, giving you a strong two-handed hold for long lenses or macro setups with extension tubes. Two microswitches in the trigger assembly give a two-stage half-press/full-press shutter action, same as a real camera shutter button. Designed around the author's specific camera and extension tube — expect to adapt some parts for your own gear. “Rainbow camo” color-split files are included for multi-color printing of the main body.
What you'll need
- 3D printer
- 10-series aluminum extrusion rail
- M3 hardware
- Two wired shutter-release microswitches
Suggested material: PLA or similar rigid filament. Designed around a specific camera/extension-tube combo — check the rail and clamp dimensions against your own gear before printing everything.
Rail_handle.stl Rail_handle_grip_rubber_-_Left.stl Rail_handle_grip_rubber_-_Right.stl Trigger.stl Trigger_grip.stl Trigger_grip_-_Screwhole_zones.stl Trigger_cover.stl Buttstock_hollow.stl Tripod_mount_frame_-_30mm_high_for_lens.stl Tripod_mount_frame_-_32mm_high_for_camera.stl Tripod_mount_knob.stl Extension_tube_clamp_-_Outer.stl Extension_tube_clamp_-_Rubber_liner.stl 10_series_M3_T-nut.stl TNutz_10_series_endcap.stl Rainbow_camo_-_Plate.stl Rainbow_camo_-_Green.stl Rainbow_camo_-_Yellow.stl Rainbow_camo_-_Blue.stl Rainbow_camo_-_Cyan.stl Rainbow_camo.3mf
Design by thenickdude, originally published on Printables. Shared here unmodified under CC BY 4.0.
