DSLR Shoulder Rig

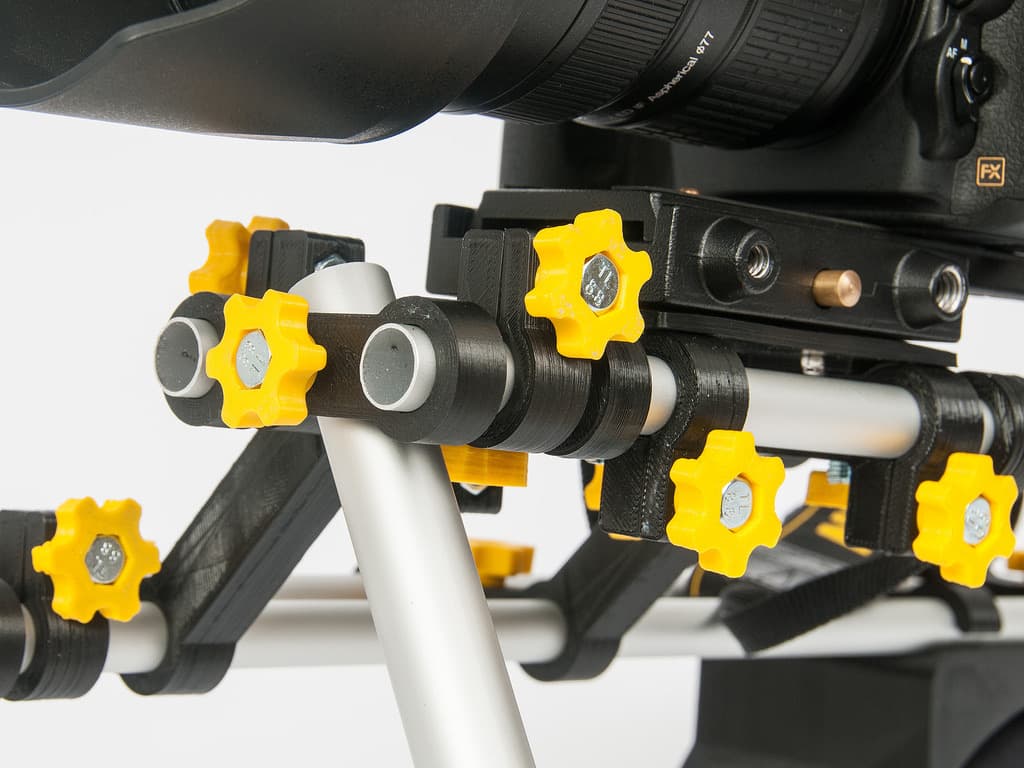

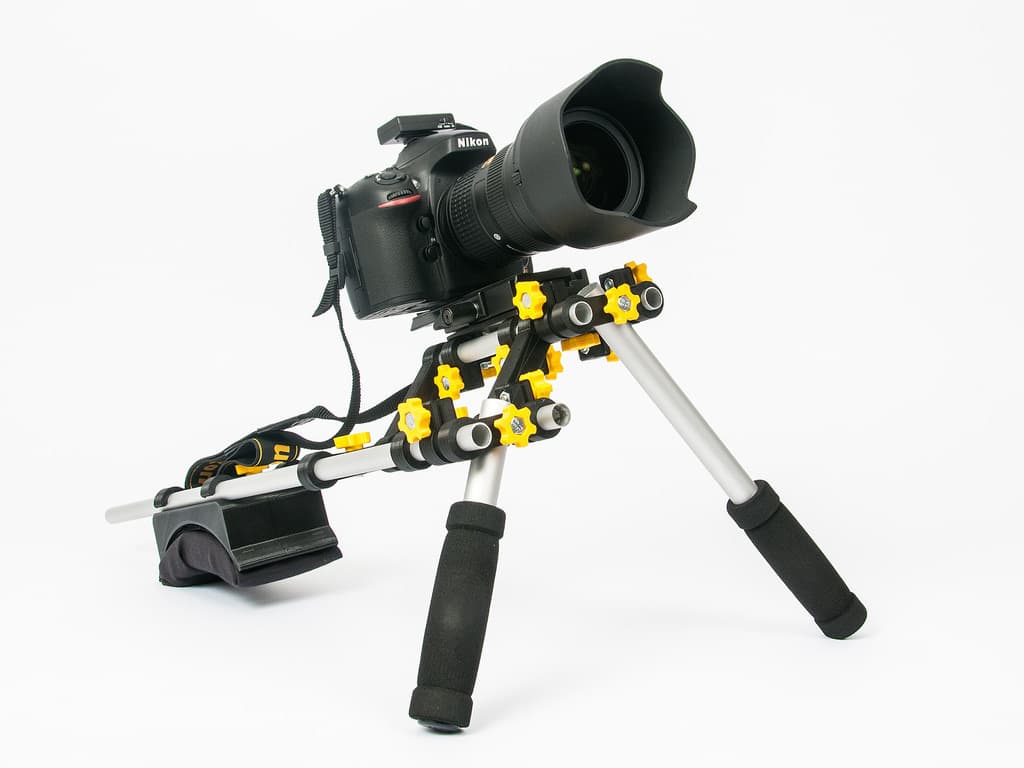

A shoulder rig for stabilizing DSLR video, designed around the industry-standard 15mm aluminum rod spacing so the printed parts can mix with commercially available rig hardware. The kit includes a camera plate, rod clamps (single and dual-parallel), a shoulder pad support in two widths, an angled handle holder/guide set (0° and ±30°), a strap clip, and a mount plus clamp for a Zoom H4n audio recorder. All parts were designed in OpenSCAD; the source files are on the original Thingiverse page if you want to customize dimensions.

What you'll need

3D printer
15mm aluminum rod stock (industry-standard spacing)
M3/M4 screws and nuts for the clamps (see original page for the full hardware list)

Suggested material: PLA or ABS. Print solid, rigid settings — these parts clamp onto metal rod and need to hold their shape under load.

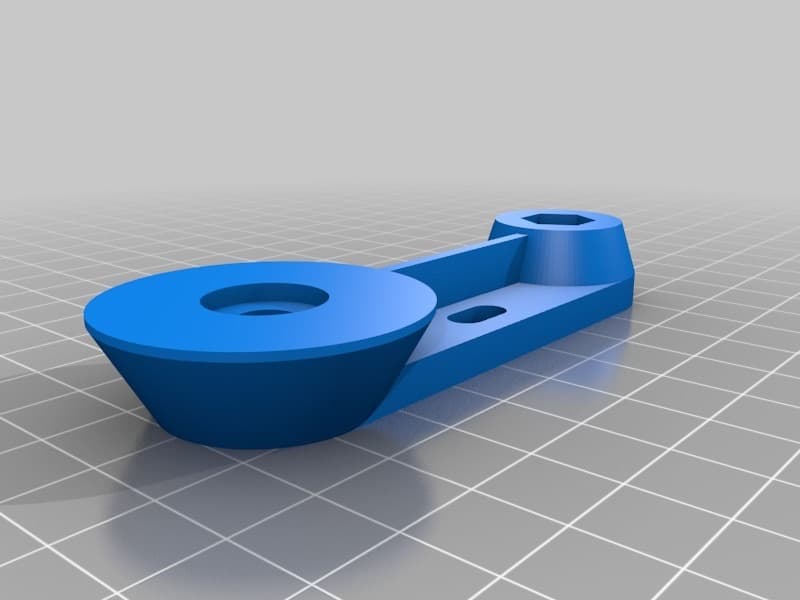

camera_plate.stl std_clamp_b.stl dual_parallel_std_clamp_a.stl std_clamp_handle_holder_0deg.stl std_clamp_handle_holder_30deg.stl std_clamp_handle_holder_-30deg.stl std_clamp_handle_guide_0deg.stl std_clamp_handle_guide_30deg.stl std_clamp_handle_guide_-30deg.stl shoulder_holder_160.stl shoulder_holder_320.stl shoulder_holder_bracket.stl strap_clip.stl h4n_holder.stl h4n_mounting_clamp.stl

Design by flummer, originally published on Thingiverse. Shared here unmodified under CC BY-SA 4.0.
