Diffuser for Canon MT-24EX Twin Flash

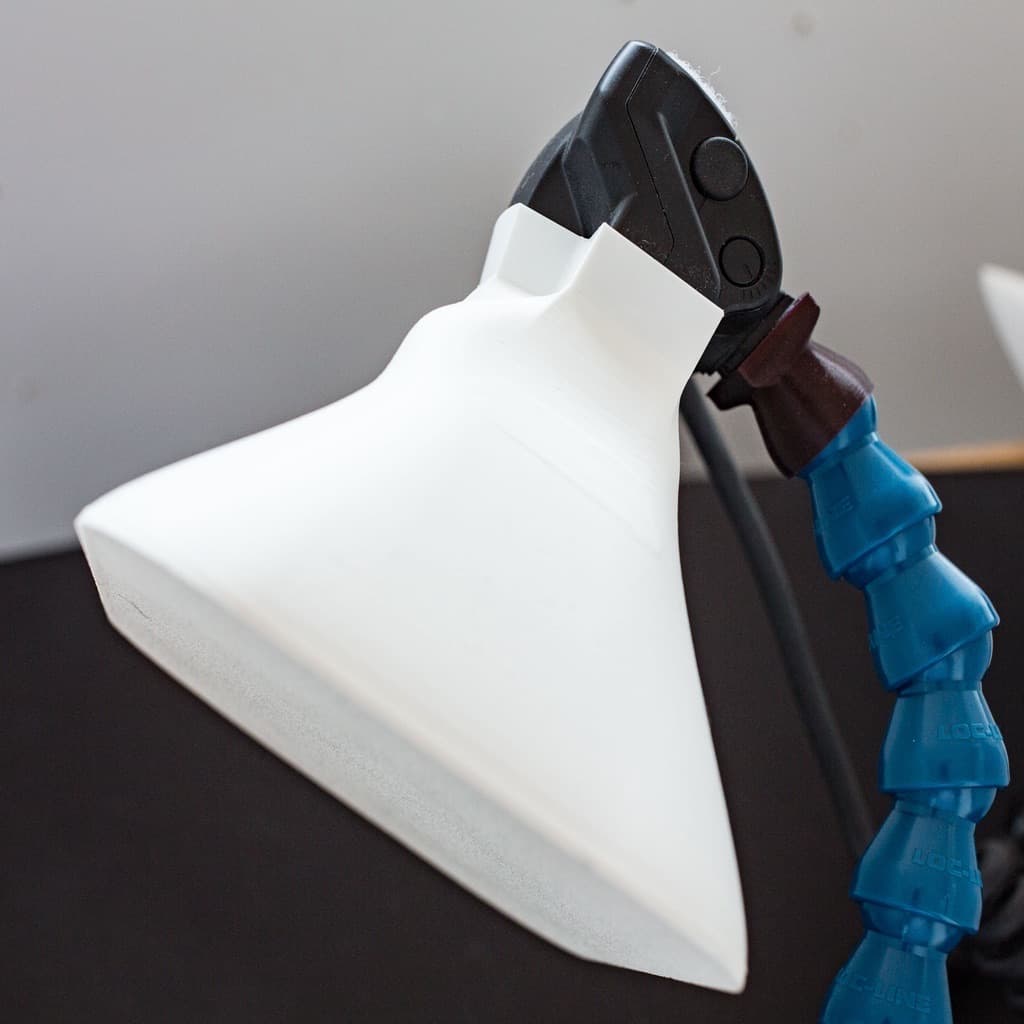

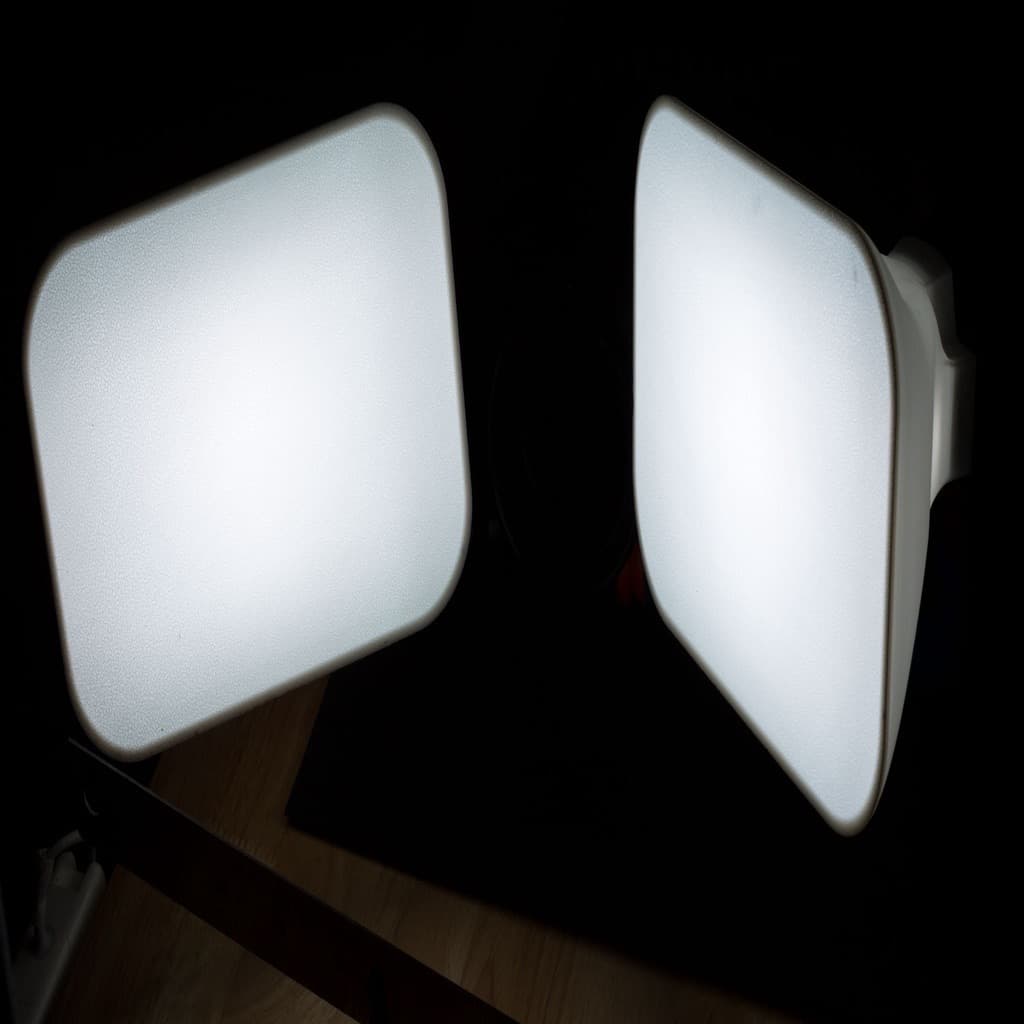

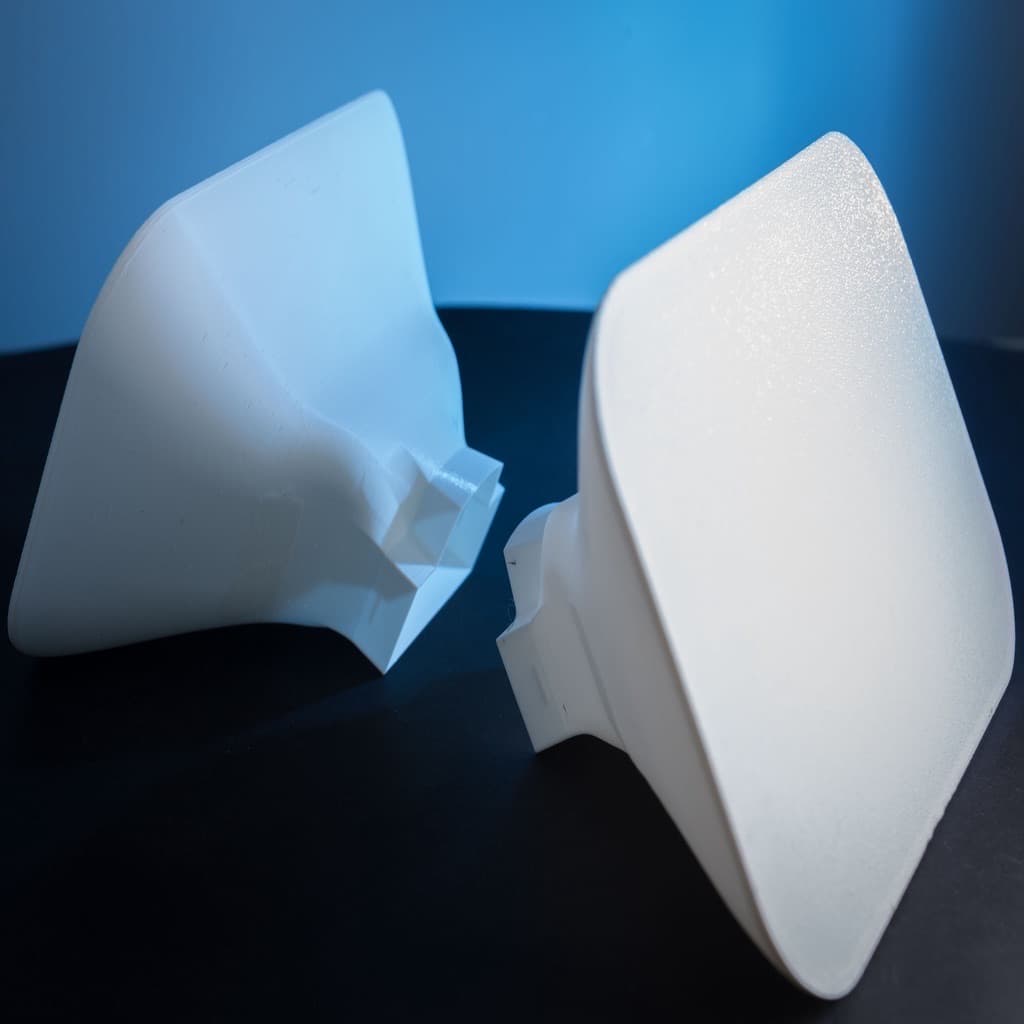

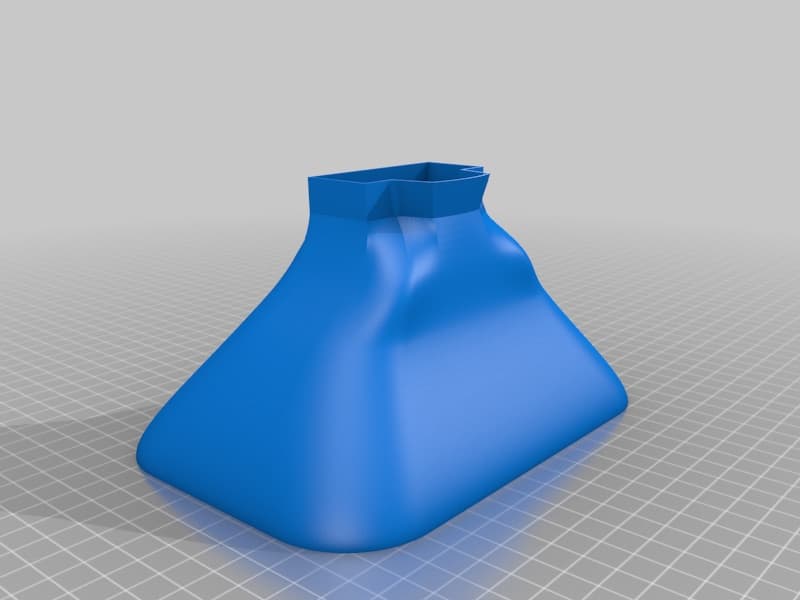

Clips onto the front of a Canon MT-24EX macro twin flash and turns its output into a large, evenly illuminated 175×120mm face. The face shape is matched to the MT-24EX's natural beam pattern so the whole panel lights up evenly. The built-in focusing lamp still works through it but won't be bright enough to be very useful afterward.
What you'll need
- 3D printer
- Canon MT-24EX twin flash
Suggested material: White PLA. 0.2mm layer height, 2 perimeters, no supports, infill doesn't matter. Set seam position to "random" so the layer-change scar doesn't line up and weaken the wall.
Design by thenickdude, originally published on Printables. Shared here unmodified under CC BY-SA 4.0.
