Parametric Arca-Swiss Quick-Release Plate

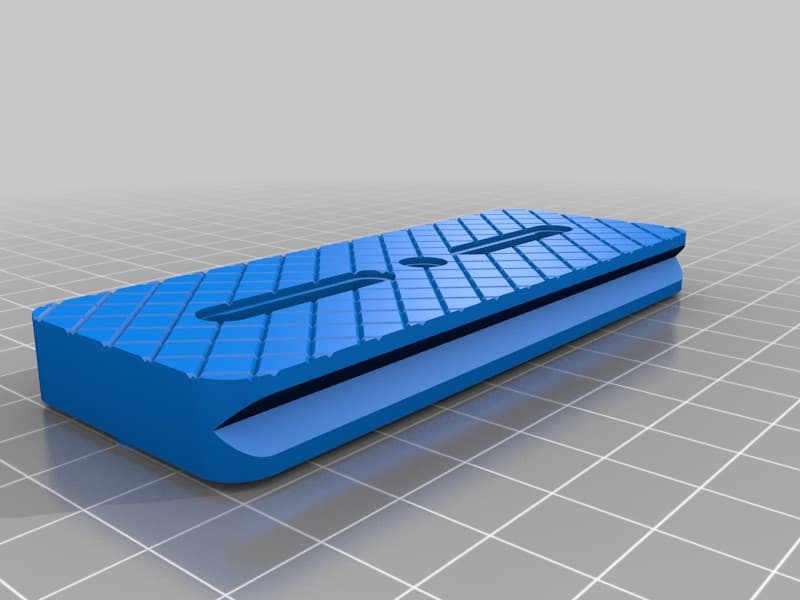

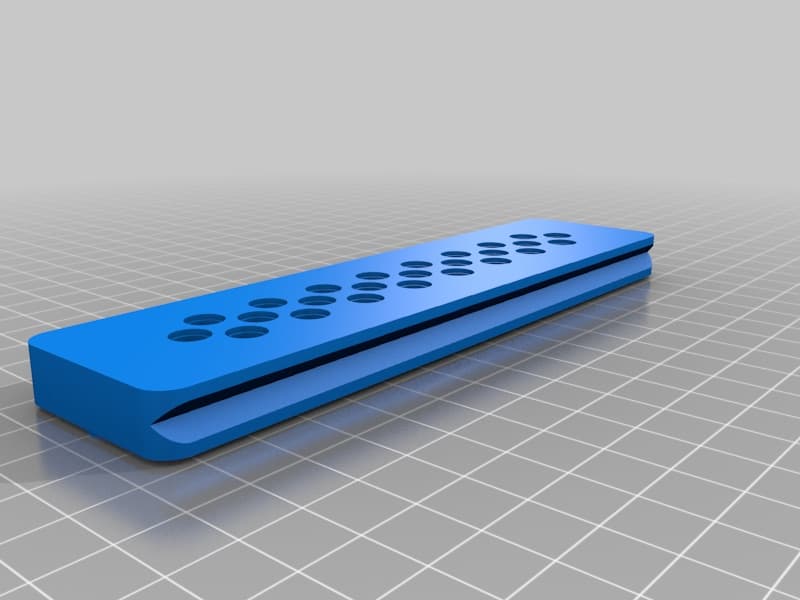

A set of Arca-Swiss compatible quick-release plates generated from a parametric OpenSCAD design, in four ready-made sizes: a 30mm single vertical slit, a 50mm single slit (3/8" thread), a 100mm double-slit plate with a center hole, and a 150mm long "cheese" plate with multiple mounting holes. The source file is on the original Thingiverse page if you want to generate a custom size.
What you'll need
- 3D printer
- Arca-Swiss compatible tripod head or clamp
Suggested material: PLA or similar rigid filament. Print rigid — these plates carry the full weight of the camera when clamped.
30mm_1_4_vertical_slit.stl 50mm_3_8_singleSlit.stl 100mm_1_4_center_hole_double_slit.stl 150mm_1_4_cheese.stl
Design by JohnClark, originally published on Thingiverse. Shared here unmodified under CC BY 4.0.
